TP4V - 4

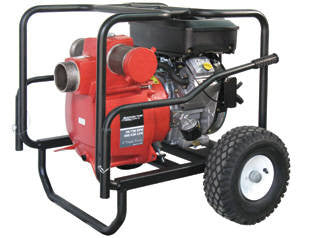

TP4V - 4" 662 GPM Trash Pump w/ 16 HP Briggs & Stratton Vanguard Engine

Regular price $3,999.00 $4,028.54 Sale

Trash pumps are used on construction sites for their ability to pump water containing foreign material. Riverside Pumpsƒ?? Premium Series Trash Pumps are known for their stout construction and excellent pumping volume. Riverside Pumps Premium Series Trash Pumps are all about productivity and value. The TP4 handles solids to 2ƒ?�. The Pump housing removes easily for cleanout without tools, just by loosening four handles. These tough pumps feature rugged sand-cast aluminum housings, for longer work life compared to inexpensive die-cast pumps. Riverside Trash Pumps last for years in performance and value. Exceptional durability, consistent high pumping performance, easy serviceƒ?? no wonder so many contractors choose Riverside Pumps Trash Pumps.


Pump Type 4-Inch Trash Pump
Port 4" NPT
Max Capacity 662 GPM
Max Head 115 ft.
Max Pressure 49.8 psi
Length 30.8 in.
Width 36.5 in.
Height 31.6 in.
Weight 264 lbs.
Pump Impeller Cast Iron, 2-Vane Open Design With Wide Solids Passage
Pump Volute Cast Iron Impeller Housing
Pump Housing Sand-Cast Aluminum, Easily Removed by 4 Disconnect Handles
Pump Seals
Pump Wear Plate Durable Cast Iron
Pump Accumulator
Pump Roll Cage Rugged 1.25" Diameter Steel, Powder-Painted
Pump Vibration Isolation Pneumatic Tires, (2) Isolators

This engine is design-engineered to dependably take on the most demanding commercial applications. Energetic and quick starting, this powerhouse features a number of advanced technologies and integrated components that are proven to elevate the reliability standard, which helps hardworking people get a lot more done in less time.

Engine Specifications:

Manufacturer Briggs & Stratton
Model Vanguard 16
Type Air-cooled, 4-stroke, OHV, V-twin cylinder
Power 16 hp
Bore x Stroke 68 x 66 mm (2.68 x 2.60 in)?ÿ
Displacement 480 cm3 (29.3 cu in)
Net Power Output 11.9 kW (16 hp) at 3,600 rpm nominal
Net Torque 33.0 Nm (24.4 lbs ft) at 2,500 rpm
Ignition System Magnetron electronic ignition
Starting System Recoil or electric starter
Carburetor Single barrel float feed
Air Cleaner Dual element type
Oil Capacity 1.31 liter (43 US oz)
Fuel Tank Capacity 6.1 liter (6.4 US qt)
